1. Introduction
I-beams are recognized as one of the fundamental structural components in the modern construction industry. These steel sections play a vital role in ensuring the strength, stability, and safety of various buildings and infrastructure projects. A comprehensive understanding of the types, standards, applications, and economic factors associated with I-beams is of utmost importance for construction industry professionals as well as researchers in this field. This report aims to provide a complete overview of the various aspects of I-beams and endeavors to offer a multifaceted analysis of this strategic product using available research resources. In this regard, the key role of I-beams in structures, the characteristics and applications of their different types, the common standards in various regions, the importance of different dimensions, the production process, the advantages and disadvantages of their use, the factors affecting price, and the latest innovations and trends in this field will be examined.
2. Role and Importance of I-Beams in the Construction Industry
I-beams perform numerous structural functions in buildings, among the most important of which is bearing vertical loads resulting from the weight of floors, roofs, and walls. These loads are transferred by the I-beams to columns and load-bearing walls and ultimately to the foundation and the ground. In addition, I-beams resist bending and shear forces caused by applied loads and play a significant role in the lateral stability of the structure, especially in resisting wind and earthquake forces.
The importance of I-beams in various construction applications is as follows:
Residential Buildings: I-beams are used in these types of buildings to support the weight of floors, roofs, and walls, allowing for open spaces with fewer columns.
Commercial Buildings: In the construction of skyscrapers, offices, and retail spaces, I-beams form the main structural frame, enabling the creation of large spans without the need for intermediate columns.
Industrial Structures: I-beams are used in factories, warehouses, and heavy industrial structures to support the weight of heavy equipment and machinery.
Bridges and Infrastructure: I-beams are an essential component in the construction of bridges and other infrastructure projects, playing a key role in load-bearing and creating long spans.
In addition to their diverse applications, the inherent advantages of steel as the raw material for I-beams further underscore their importance:
The high strength-to-weight ratio of steel allows for the design of slender and efficient structures. This feature is particularly important in high-rise buildings and structures with large spans where reducing the overall weight of the frame is crucial for stability.
Steel has high durability and resistance to harsh weather conditions, heavy loads, and even seismic activity. Unlike wood, steel does not warp, rot, or expand due to moisture, ensuring the longevity of the structure.
The resistance of steel to pests, rot, and warping minimizes the need for maintenance and repairs, increasing the useful life of the structure.
The recyclability of steel makes it an environmentally friendly option. Using recycled steel significantly reduces the energy required to produce new steel and helps conserve natural resources.
The fire resistance of steel, especially when properly protected, significantly increases the safety of the building. Fire-resistant coatings can increase the fire endurance of steel I-beams, providing more time for evacuation in the event of a fire.
The variety of applications of steel I-beams in different sectors of construction, from residential and commercial buildings to industrial and infrastructure structures , demonstrates the fundamental role of this product in modern engineering. The adaptability and high reliability of I-beams make them an indispensable choice for construction projects. The high strength-to-weight ratio of steel as a key advantage has always been a focus in the construction industry. This feature allows for the design of structures with maximum load-bearing capacity and minimum weight, leading to improved efficiency in design, transportation, and reduced foundation requirements.
3. Types of I-Beams: Characteristics and Applications
3.1 IPE (European and Iranian Standard)
Characteristics:
The cross-section of this type of I-beam is in the shape of the English letter I with parallel flange surfaces.
It has a slender profile with relatively small flanges compared to its height, which contributes to its high strength-to-weight ratio.
The thickness of the web and flanges is uniform throughout the section.
It is produced according to European standards (EN 10365) and Iranian national standards (INSO 16348).
Available in various steel grades such as S235JR and S355JR.
Its standard height varies from 80 mm to 600 mm, with common sizes in Iran ranging from 100 mm to 300 mm.
Applications:
Widely used in the construction of building frames for floors, roofs, and walls in residential and commercial projects.
Suitable for bridge supports due to its high load-bearing capacity.
Used in the construction of rigid frames for industrial warehouses and factories.
Employed as columns, sill beams, and floor beams in buildings.
Also used in cellular bridges.
Standards:
European Standard: EN 10365 specifies dimensions and tolerances.
Iranian Standard: INSO 16348.

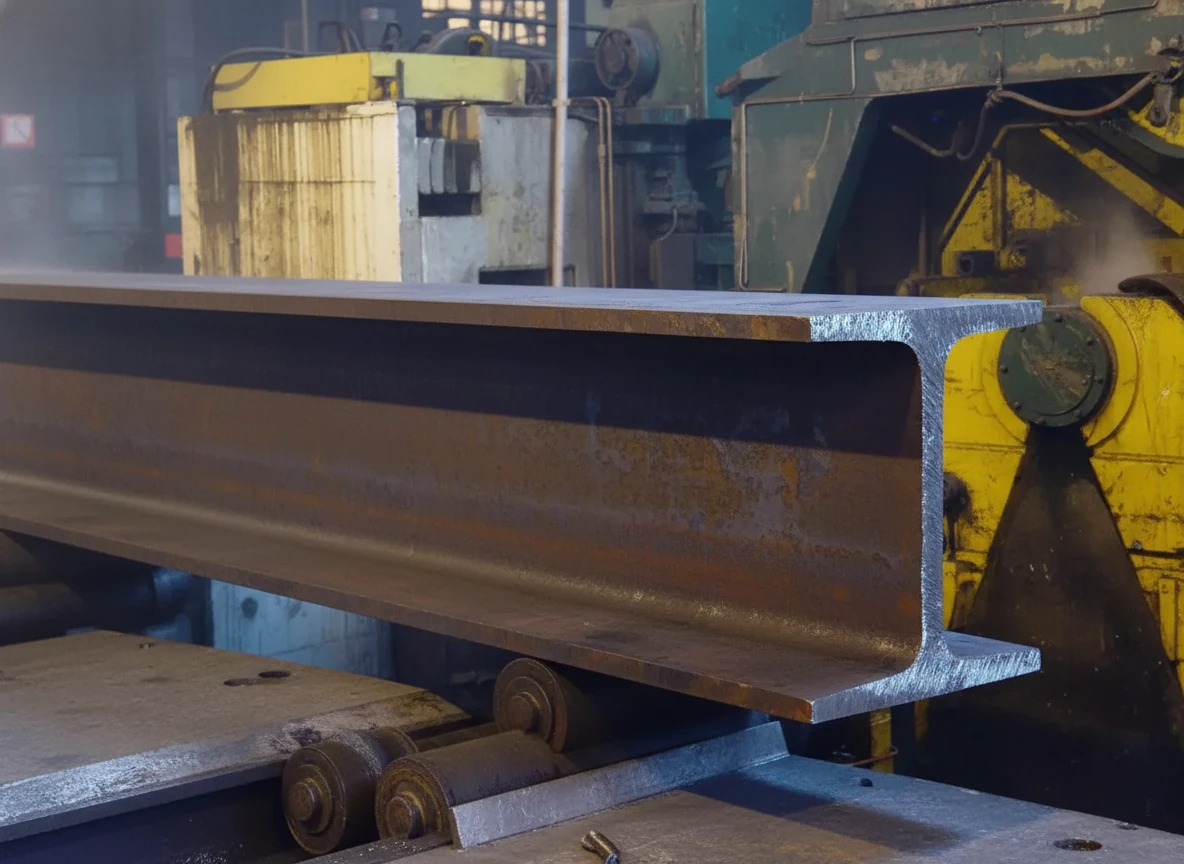

IPE 100 is a steel I-beam with a European standard.
The parallel flanges of IPE beams as a key feature provide ease of connection and uniform load distribution compared to I-beams with tapered flanges. The existence of separate standards for IPE beams in Europe and Iran emphasizes the importance of adhering to regional specifications that may have slight differences in dimensions, material properties, or testing protocols.
3.2 INP (Chinese and Russian Standard)
Characteristics:
This type of I-beam is also I-shaped and is produced according to Russian (GOST 8239, GOST 26020) and Chinese (GB/T 706) standards.
The main difference from IPE is its tapered flanges, which decrease in thickness with increasing distance from the web.
Due to the tapered flange design, it is usually stronger in the center of the section.
It may be slightly heavier than IPE beams of a similar size due to this design.
Its height varies from 80 to 550 mm.
Applications:
Widely used in the shipbuilding industry.
Used in the construction of dams and piers.
Employed in the construction of high-rise towers.
Used in trusses, columns, and roofs.
Suitable for heavy-duty applications requiring greater bending resistance.
Used for structural supports, especially under floors or roofs where significant vertical loads exist.
Common in the construction of heavy machinery frames or industrial equipment.
Also used in bridge construction.
Standards:
Russian Standards: GOST 8239 (hot-rolled with sloping flanges), GOST 26020 (with parallel flanges - although some sources contradict this by stating that INP flanges are tapered).
Chinese Standard: GB/T 706.
The tapered flanges of INP beams create greater bending resistance in the center of the section, making this feature suitable for heavy-duty applications with concentrated loads in the middle of the beam. The similarity in applications between IPE and INP in areas such as building frames and bridges , despite different standards (Europe/Iran vs. China/Russia), highlights potential challenges in international construction projects in terms of compatibility and material sourcing.
3.3 IPB (Wide Flange)
Characteristics:
The cross-section is in the shape of the English letter H with wider and longer flanges compared to IPE beams.
The flange width is often approximately equal to the depth of the I-beam.
Known by the abbreviation H and sometimes V (heavy) or L (light) alongside its name.
Offers greater load-bearing capacity and stability.
Available in various steel grades.
Its standard lengths are usually 6000 or 12000 mm.
Applications:
Used in heavy construction projects such as bridges, high-rise buildings, and large industrial structures.
Commonly used for load-bearing walls, roofs, and also columns in multi-story buildings.
Suitable for constructing machine bases and building frames.
Used in the oil and gas, chemical, and petrochemical industries.
Standards:
Often associated with European wide flange beams (HEB) and the German standard DIN 1025-2.
May also be known as HEM (heavy) or HEA (light) versions.
The H-shape and wider flanges of IPB beams are directly related to their increased load-bearing capacity and stability , making them the preferred choice for very heavy loads and large spans where structural integrity is paramount. The association of IPB beams with European standards (HEB) indicates regional preference and adherence to specific dimensional and material specifications in Europe.
3.4 CPE (Castellated)
Characteristics:
Created by cutting and re-welding the web of a standard I-beam (often IPE), resulting in a honeycomb or hexagonal pattern of openings.
Has a higher tensile and compressive load-bearing capacity compared to IPE, IPB, and INP beams.
The height of the I-beam increases without a significant increase in weight, which increases the load-bearing capacity and allows for longer spans.
The web openings allow for easier integration of utilities such as electrical wiring, plumbing, and HVAC systems.
Can be rectangular or round castellated beams based on the shape of the openings.
Applications:
Used in commercial and industrial buildings for structural framing, especially for long spans and lightweight construction.
Popular for converting attic spaces and developing residential homes.
Used as architectural elements due to their distinctive appearance.
Employed in bridges and long-span structures where weight reduction is critical.
Suitable for industrial buildings such as warehouses and factories.
Standards:
Often produced using IPE beams according to European standards.
The creation of CPE beams through the modification of standard I-beams represents an innovative approach to optimizing material use and performance, making it possible to achieve greater structural performance (increased height, longer spans) without a proportional increase in weight. The added benefit of increased structural capacity and ease of utility integration makes CPE beams an attractive option for modern construction where both structural efficiency and building services are of high importance.
4. I-Beam Standards: A Comparative Overview
4.1 European Standards (EN 10365)
Specifies the dimensions, tolerances, and mass of hot-rolled steel sections, including channels, I and H sections, covering IPE and IPN beams.
EN 10025 is the main standard for hot-rolled structural steels, covering various grades and their properties.
Includes standards for tolerances (EN 10034) and surface conditions (EN 10163-3).
Newer versions (e.g., EN 10365:2017) may have updates on dimensions and include lighter and heavier versions of IPE beams.
4.2 Iranian Standards (INSO 16348)
Iranian National Standard No. 3277 specifically covers narrow I-beams with sloping flanges (IPN).
IPE beams produced in Iran generally follow European standards (EN 10365).
INSO 16348:2003 pertains to metallic and other inorganic coatings and appears to relate to surface treatment or appearance rather than the dimensions of steel I-beams. Further research is needed to confirm its direct relevance to steel I-beam dimensions.
4.3 Chinese Standards (GB/T 706, GB/T 700)
GB/T 706 covers hot-rolled equal and unequal leg angles (likely for L-shaped beams) but is mentioned in the context of Chinese standard I-beams (INP) with tapered flanges.
GB/T 700 specifies general requirements for hot-rolled structural steels, including grades like Q235 and Q345 used in steel I-beams.
GB/T 1591-2008 is another relevant standard for high-strength low-alloy structural steel, with Q345 being a key grade within it.
4.4 Russian Standards (GOST 8239, GOST 26020)
GOST 8239 specifies hot-rolled I-beams with sloping flanges (INP).
GOST 26020 covers hot-rolled I-beams with parallel flanges (possibly equivalent to IPE), but some sources indicate that INP also follows this standard. There appears to be conflicting information in the provided snippets regarding whether GOST 26020 is for parallel or tapered flange I-beams.
GOST 380-88 specifies steel grades like CT3 used in Russian H and I-beams.
4.5 Comparison of Standards
IPE generally follows European standards (EN 10365), while INP aligns with Chinese (GB/T 706) and Russian (GOST 8239) standards.
IPB (wide flange) often corresponds to European HEB sections defined by DIN 1025-2.
IPE production in Iran follows European norms, while Iranian IPN is covered by its own national standard (INSO 3277).
Steel grades differ across standards (e.g., S235 - Europe, Q235 - China, CT3 - Russia) but often have comparable mechanical properties. For example, Q235 is considered equivalent to S235JR and ASTM A36. Similarly, Q355 in Chinese standards aligns with S355JR in European standards.
The existence of different regional standards for structurally similar steel I-beam types (IPE/INP) necessitates careful consideration of material specifications and potential equivalencies when working on international projects or sourcing materials globally. The ambiguity in information regarding Russian standards (GOST 26020) highlights the complexity of navigating international standards and the need for reliable and specific documentation when selecting materials based on these norms.
5. Importance and Application of Different I-Beam Sizes (12, 14, 16, 18, 20)
These numbers typically refer to the height or size of the IPE beam in centimeters. These sizes are among the common dimensions of IPE beams in the construction industry, especially in Iran. The specific application of each size depends on the load requirements, span length, and structural design of the building. Larger sizes (e.g., 18, 20) are more likely used for heavier loads and longer spans in commercial or industrial buildings. Smaller sizes (e.g., 12, 14, 16) may be used for residential construction or secondary structural elements. Snippet mentions that sizes 14, 16, and 18 are very popular in the construction industry.
The use of numerical designations (12, 14, 16, 18, 20) to indicate the size of IPE beams facilitates communication and material selection within the industry, providing a common language for engineers and builders to specify and procure the necessary structural elements. While these sizes are mentioned as common , the lack of specific application examples for each particular size in the provided snippets indicates a need for further research to understand the precise structural roles and limitations of each dimension in various construction scenarios.
6. Production Process of I-Beams
Steel I-beams are primarily produced using the hot-rolling method. This process involves passing a heated steel billet through a series of rollers to gradually reduce its thickness and shape it into the desired form (I, H, etc.). For IPE beams, this process includes passing the steel billet through a stand rolling section, reducing its height and increasing its length. The material composition involves alloying iron with carbon, manganese, silicon, chromium, nickel, titanium, copper, phosphorus, sulfur, and molybdenum to achieve specific properties. Modern production involves advanced technologies such as Zeman robotic steel beam assembly machines for precision and efficiency. Quality control includes non-destructive testing (ultrasonic, magnetic particle, radiography), chemical analysis, and mechanical testing to ensure the I-beams meet the required specifications.
The prevalence of the hot-rolling method in the production of steel I-beams indicates a well-established and efficient technique for manufacturing these structural elements on a large scale, ensuring consistent quality and mechanical properties. The integration of advanced automation and stringent quality control measures in modern steel I-beam production reflects a commitment to accuracy, efficiency, and adherence to strict industry standards, ultimately ensuring the safety and reliability of steel structures.
7. Advantages and Disadvantages of Using I-Beams in Construction
Advantages:
High strength and durability, enabling the construction of large and complex structures.
Flexibility in design, allowing for open spaces and innovative architectural designs.
Increased speed and efficiency in construction due to prefabrication and ease of assembly.
Sustainability through recyclability and the potential use of recycled content.
Long-term cost-effectiveness due to long lifespan and low maintenance requirements.
Resistance to fire, pests, mold, and corrosion.
Adaptability for future modifications and expansions.
Earthquake resistance due to flexibility.
Disadvantages:
Potentially higher initial cost compared to some other materials.
Susceptibility to corrosion if not properly protected.
Poor resistance to high temperatures without fireproofing.
Difficulties in welded connections for some types like IPN.
High weight requiring specialized equipment for handling and installation.
Potential for thermal bridging if not properly insulated, affecting energy efficiency.
The extensive list of advantages demonstrates why steel I-beams are a preferred material in modern construction, offering a compelling combination of structural performance, durability, and sustainability. The identified disadvantages highlight the importance of proper design, material selection (e.g., corrosion-resistant steel), and installation techniques to mitigate potential drawbacks and ensure the long-term performance of steel structures.
8. Factors Affecting the Price of Different Types and Sizes of I-Beams
8.1 General Factors:
Type and size of the I-beam.
Steel grade and quality. Higher grades like S355 are more expensive than lower grades like S275.
Customization requirements (dimensions, shape, cutting, drilling, welding).
Market conditions (supply and demand, raw material costs, global steel prices). Steel prices fluctuate based on the global economy, trade policies, and natural disasters.
Transportation costs, especially for remote areas.
Labor costs for installation.
Finishes and coatings (anti-corrosion, fire-resistant).
Quantity of steel purchased (bulk discounts).
Location and local market prices.
Fluctuations in exchange rates.
8.2 Specific Price Trends and Comparisons:
The price of I-beams can start from around ₹45,511 per ton.
IPE beam prices vary based on size and supplier, for example, from $480 to $620 per ton for IPE 120. Smaller IPE beams are generally cheaper than larger ones.
IPE profiles may be more cost-effective than INP and IPB profiles for a given span length.
The installation cost of I-beams for residential buildings ranges from $130 to $520 per foot. The raw material price of I-beams is around $1.17 to $2.08 per pound or $2340 to $4030 per ton for bulk purchases.
IPB beam prices can range from $450 to $550 per ton.
Castellated beams can be a more cost-effective alternative to solid beams due to material savings.
The multitude of factors influencing the price of steel I-beams indicates a complex and dynamic market where costs are affected by both the intrinsic properties of the material and external economic and logistical conditions. This complexity necessitates careful planning and procurement strategies for effective cost management. The point that IPE beams may be more cost-effective than INP and IPB for some applications suggests that the choice of I-beam type should be based not only on structural requirements but also on a thorough cost analysis to optimize project budgets.
Suggested Table: Summary of approximate price ranges per ton for different types of steel I-beams (IPE, INP, IPB) based on research snippets:
I-Beam Type | Approximate Price Range (USD per ton) | Sources |
| IPE | 480 - 620 |
|
| INP | 475 - 550 |
|
| IPB | 450 - 550 |
|
9. Latest Innovations and Trends in the Production and Application of I-Beams
9.1 Production Innovations:
Hydrogen-based steel production as a greener alternative to traditional methods using coke.
Smart steel technologies using artificial intelligence and machine learning to optimize processes and quality control.
3D printing and additive manufacturing to create custom and complex steel components with minimal waste.
Carbon capture, utilization, and storage (CCUS) technologies to reduce greenhouse gas emissions from steel plants.
Nanotechnology to develop high-strength, durable, and corrosion-resistant steel alloys.
Advanced coating technologies to improve surface performance and corrosion resistance.
Robotic automation to increase precision, speed, and safety in manufacturing processes.
Continuous casting methods for high quality and yield.
9.2 Application Trends:
Increased use of prefabricated and modular steel construction for faster and more efficient building.
Growing focus on sustainable and green building practices, using recycled steel and energy-efficient designs.
Integration of smart technologies (IoT, sensors) to monitor structural health and optimize building performance.
Innovative architectural designs featuring exposed steel structures and complex geometries.
Use of high-strength steel alloys for lighter and more durable structures.
Application of multi-functional steel structures with integrated HVAC systems, solar panels, and rainwater harvesting systems.
The steel industry is actively pursuing sustainability through innovation in production (hydrogen, recycling, carbon capture) and a growing emphasis on green building practices in application , indicating a strong trend towards environmentally responsible construction. The integration of digital technologies (AI, BIM, 3D printing, IoT) across the lifecycle of steel I-beams, from design and production to structural health monitoring, signifies a move towards greater efficiency, precision, and automation in the construction industry.
